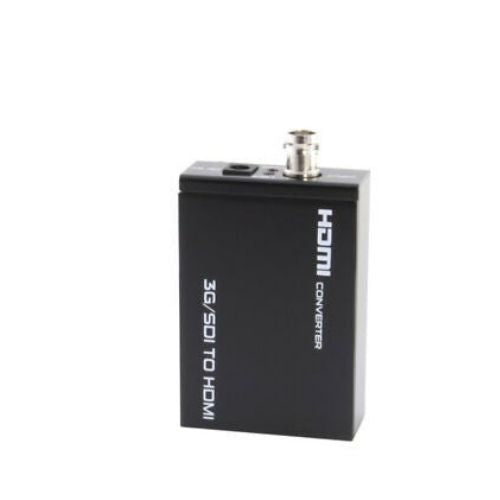

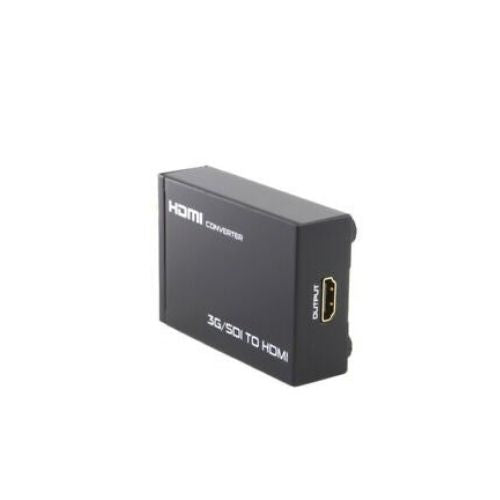

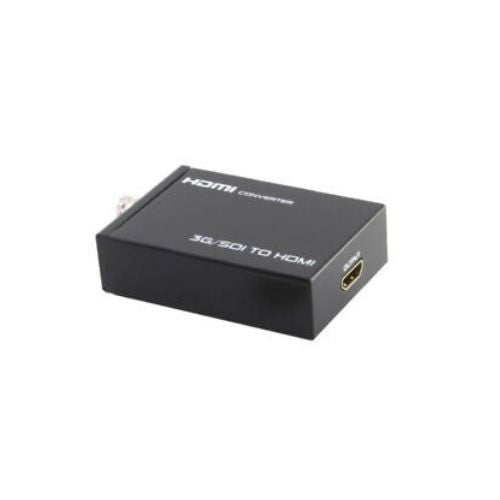

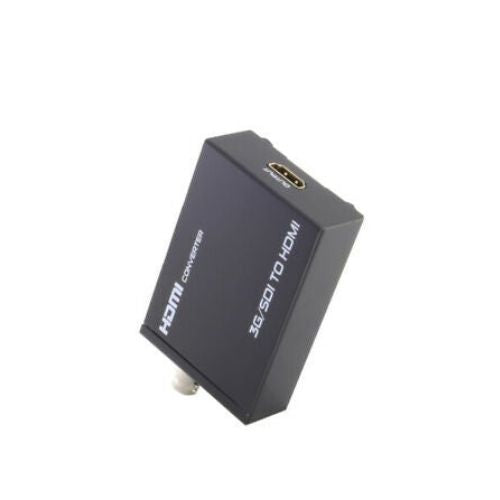

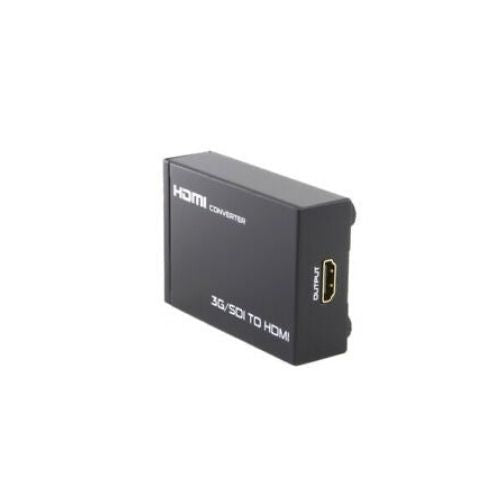

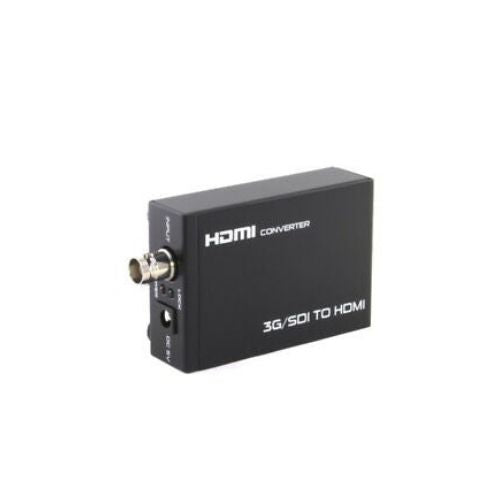

New MINI SDI to HDMI Converter Adapter BNC SDI/HD-SDI/3G-SDI High Speed
Features:
- Shows SDI source on HDMI display
- Supports SDI intput distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Supports HDMI output timings: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60
- Converts SDI to HDMI signal:
- SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s) to 480i/576i
- HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s) to 720p/1080i
- 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) to 1080p
- Works as receiver side of HDMI extender over BNC coaxial cable (need to work with HDMI to SDI converter, sold seperately)
Specifications:

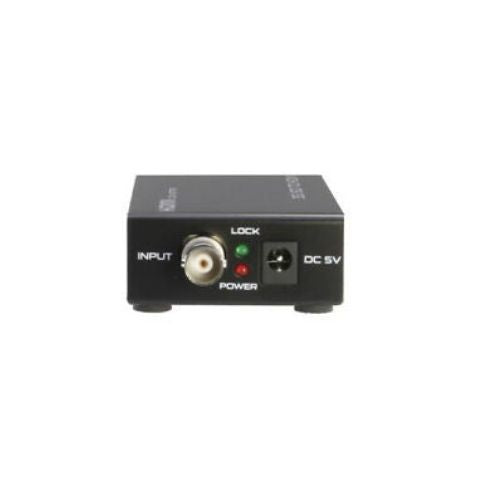

- Input Port: 1 x BNC (SDI/ HD-SDI/ 3G-SDI)

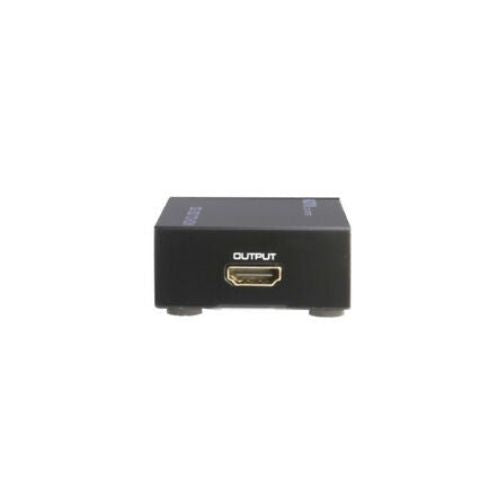

- Output Port: 1 x HDMI
- SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
- Power Supply: DC 5V -12V
- ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
- Power Consumption (Max): 5W
- Size: 94 x 49 x 25mm (3.7 x 1.9 x 1 inch)
- Weight: 117g (4.13 oz)
Package Include:
- 1 x SDI to HDMI Converter

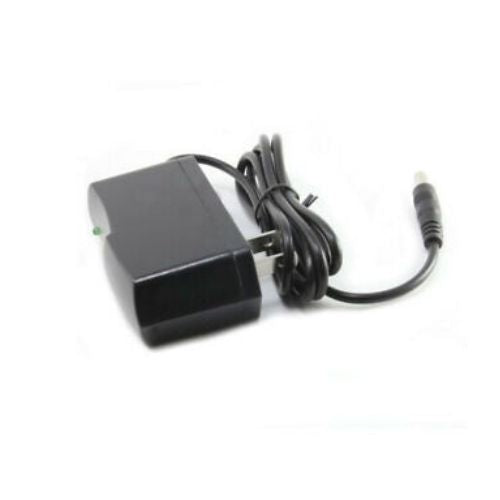

- 1 x DC Power Adapter
